GA-
Genetic Algorithm
Simulate Evolution Process
crossover
mutation
Evolution through natural selection:
each individual tends to pass on its traits to its offspring
nature produces individuals with differing traits
the fittest individuals (those with the most favourable traits) tend to have more offspring than do those with unfavourable traits, thus driving the population as a whole towards favourable traits.
Over long period, variation can accumulate, producing entirely new species whose traits make them especially suited to particular ecological niches.
Example (cookies)
There are 3 issues:
construction of chromosome
define the reproduction operations
mutation
crossover
define the fitness of each chromosome
A chromosome is a representation in which
there is a list of elements called genes.
The
chromosome determines the overall fitness manifested by some
mechanism that uses the chromosome's genes as a sort of blueprint.

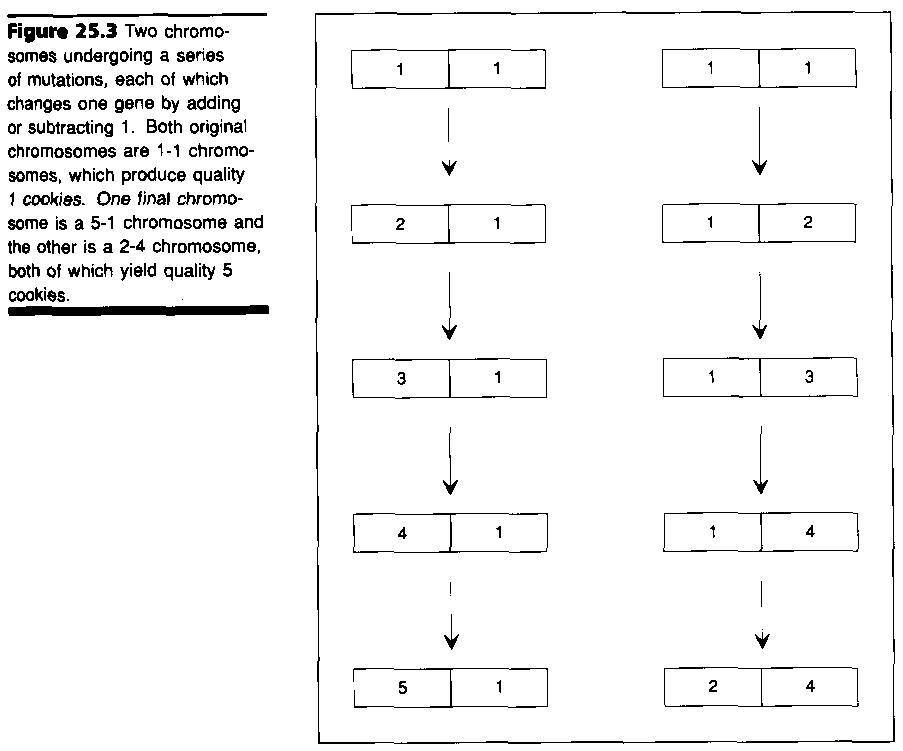

Mutation:
Crossover
The fitness of a chromosome is the prob. that the chromosome survive to the next generation.
e.g.
q
= quality score, from 1 to 9.
In the previous example, we have:
Chromosomes |
Quality |
Standard Fitness |
---|---|---|
(1,4) |
4 |
0.4 |
(3,1) |
3 |
0.3 |
(1,2) |
2 |
0.2 |
(1,1) |
1 |
0.1 |
To mimic natural selection in general:
create an initial "population" of one chromosome.
Mutate one ore more genes in one or more of the current chromosomes, producing one new offspring for each chromosome mutated.
Mate one or more pairs of chromosomes.
Add the mutated and offspring chromosomes to the current population.
Create new population by keeping the best of the current population's chromosomes, along with other chromosomes selected randomly from the current population. Bias the random selection according to assessed fitness.
Issues in the GA
Population Size
if no. too low, all chromosomes will soon have identical traits and crossover will do nothing.
If no. too high, problem in computation time
Mutation rate
low ¥ new traits will appear too slowly in the population
high ¥ each generation will be unrelated to the previous generation.
Mating
Is mating allowed?
How are mating pairs selected?
How are crossover points determined?
Repeated chromosome ¥ can any chromosome appear more than once in a population?
Example:
Use the following algorithm:
starts with a single chromosome located at (1,1)
no chromosome is permitted to appear more than once in each generation.
A maximum of four chromosomes survive from one generation to the next.
Each survivor is a candidate for survival to the next generation, along with any new chromosome produced.
One gene is selected at random in each of the survivors, and is mutated at random. If the mutant is different from any candidate accumulated so far, that mutant is added to the candidates
there is no crossover
the chromosome with the highest score survives to the next generation
the remaining survivors from one generation to the next are selected at random from the remaining candidates, according to the standard method for fitness computation.
Generation 0: (1,1) 1
Generation
1: (1,2) 2
(1,1) 1
Generation
2: (1,3) 3
(1,2) 2
(1,1) 1
Resulting
in (1,4) 4
(2,2) 3
(1,3) 3
(2,1) 2
(1,2) 2
(1,1) 1
Generation
3: (1,4) 4
(1,3) 3
(1,2) 2
(2,1) 2
Resulting
in (1,4) 4
(1,3) 3
(1,2) 2
(2,1) 2
(2,4) 5
(2,3) 4
(3,1) 3
Generation
4: (2,4) 5
(1,4) 4
(1,3) 3
(2,1) 2
...
Generation 8: (5,5) 9 ...
For straightforward bumplike terrain, crossover is not at all necessary
To include crossover into the algorithm,
consider only the chromosomes that survived from the previous generation
for each chromosome, select a mate from among the other survivors. Mate selection is done at random, in keeping with the standard method for computing fitness.
Each mating pair is crossed in the middle, producing two crossed, offspring chromosomes. If an offspring chromosome is different from any candidate accumulated so far, that offspring chromosome is added to the candidates.
Using crossover can overcome a moatlike function
Rank Method
Not only offers a way of controlling the bias toward the best chromosome, but also eliminates implicit biases, introduced by unfortunate choices of the measurement scale, that might otherwise do harm.
To select a candidate by rank method,
sort the n individuals by quality
let the probability of selecting the i-th candidate, given that the first i-1 candidates have not been selected, be p, except for the final candidate, which is selected if no previous candidate has been selected.
Select a candidate using the computed probabilities.
Consider p=0.667
Chromosome |
Quality |
Rank |
Standard fitness |
Rank |
---|---|---|---|---|
(1,4) |
4 |
1 |
0.4 |
0.667 |
(1,3) |
3 |
2 |
0.3 |
0.222 |
(1,2) |
2 |
3 |
0.2 |
0.074 |
(5,2) |
1 |
4 |
0.1 |
0.025 |
(7,5) |
0 |
5 |
0 |
0.012 |
Diversity Principle
it can be as good to be different as it is to be fit.
Diversity measure:
e.g.
Calculate the sum of the inverse squared distances between that
chromosome and the other already selected chromosomes.
Example:
Chromosome |
Score |
1/d2 |
Diversity rank |
Quality rank |
---|---|---|---|---|
(1,4) |
4 |
0.040 |
1 |
1 |
(3,1) |
3 |
0.250 |
5 |
2 |
(1,2) |
2 |
0.059 |
3 |
3 |
(1,1) |
1 |
0.062 |
4 |
4 |
(7,5) |
0 |
0.050 |
2 |
5 |
To select candidate by the rank-space method:
sort the n individuals by quality
sort the n individuals by the sum of their inverse squared distances to already selected candidates
use the rank method, but sort on the sum of the quality rank and the diversity rank, rather than on quality rank
Example (5,1) is already selected.
Chromosome |
Rank sum |
Combined rank |
Fitness |
---|---|---|---|
(1,4) |
2 |
1 |
0.667 |
(3,1) |
7 |
4 |
0.025 |
(1,2) |
6 |
2 |
0.222 |
(1,1) |
8 |
5 |
0.012 |
(7,5) |
7 |
3 |
0.074 |
Now (5,1) and (1,4) is selected. We need 2 more.
We use diversity rank as the tie breaker.
Chromosome |
|
Diversity rank |
Quality rank |
Combined rank |
Fitness |
---|---|---|---|---|---|
(3,1) |
0.327 |
4 |
1 |
4 |
0.037 |
(1,2) |
0.309 |
3 |
2 |
3 |
0.074 |
(1,1) |
0.173 |
2 |
3 |
2 |
0.222 |
(7,5) |
0.077 |
1 |
4 |
1 |
0.667 |
Finally, we get:
Chromosome |
|
Diversity rank |
Quality rank |
Combined rank |
Fitness |
---|---|---|---|---|---|
(3,1) |
0.358 |
3 |
1 |
3 |
0.111 |
(1,2) |
0.331 |
2 |
2 |
2 |
0.222 |
(1,1) |
0.190 |
1 |
3 |
1 |
0.667 |
The above discussed method was applied to find the optimum. We start from chromosome (1,1) and use p=0.667. 100 experiments were performed. The average number of iteration required is:
Mountain |
Standard Method |
Quality Rank |
Rank
|
---|---|---|---|
Bump |
14 |
12 |
12 |
Moat |
155 |
75 |
15 |
The luckiest result: optimum obtained just after 7 iterations.
